PRODUCT INFORMATION

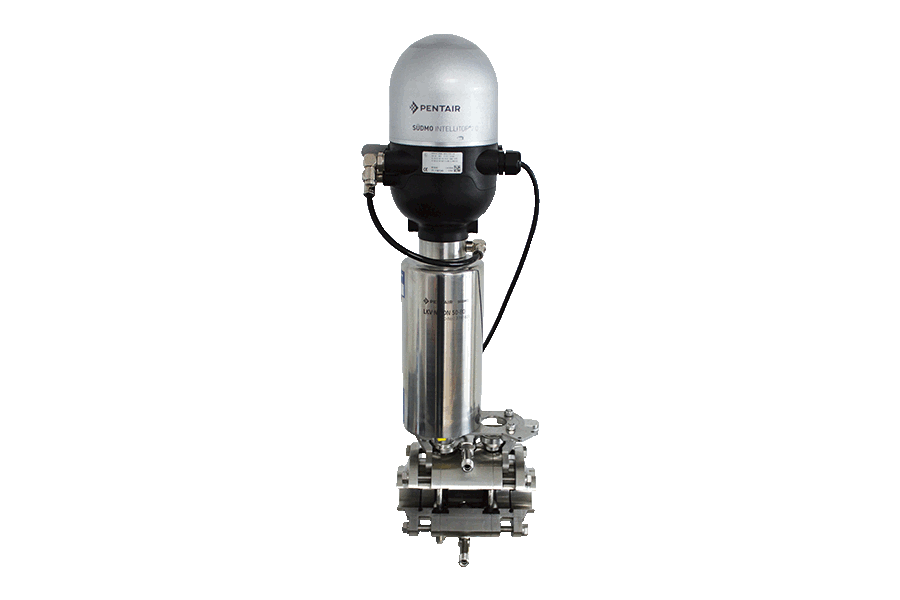

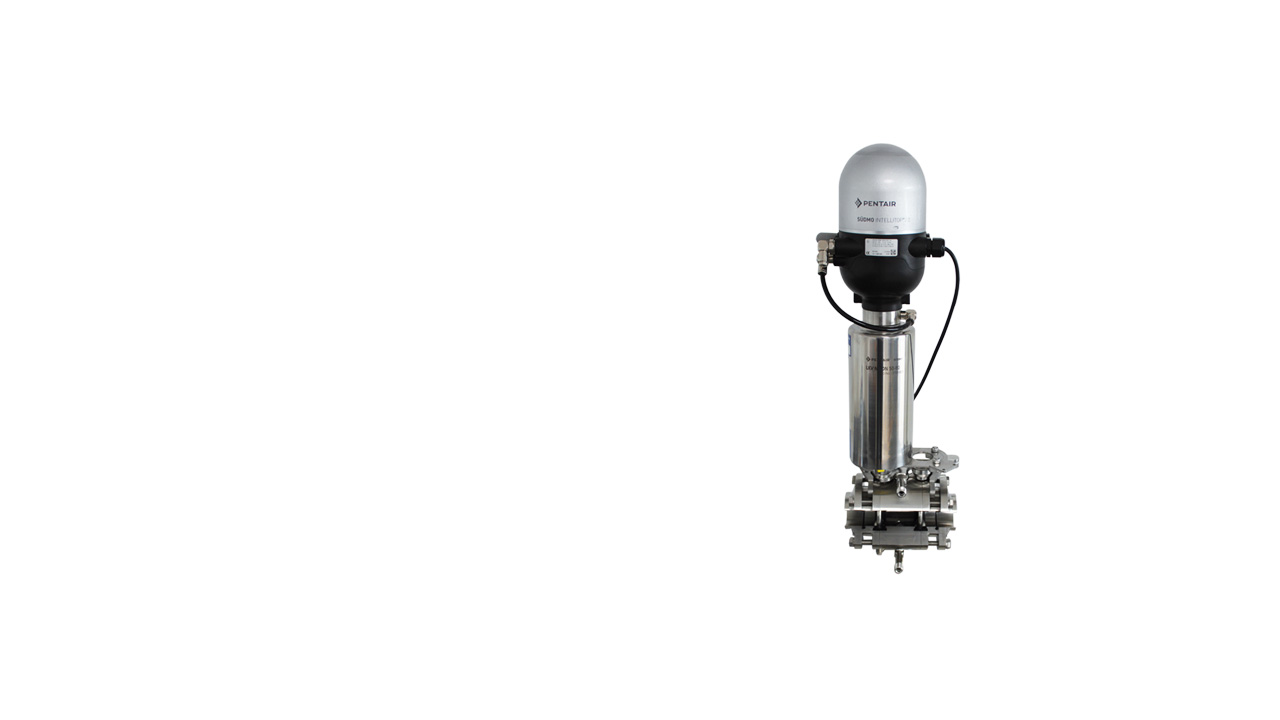

Südmo Leakage Butterfly Valves - LBV Perform - L 587/L 667/L 687 provide safe separation of incompatible fluids in a compact design and brings significant advantages over traditional block and bleed installations.
Südmo LBV Perform Leakage Butterfly Valves are used when two incompatible media (product and cleaning agent) need to be safely separated. In many brewing, beverage, and food processing industries, product streams and cleaning media (CIP) run in close proximity, often in shared manifolds or panels.
LBV Perform valves are specifically designed for use in CIP supply and return lines.
They offer an economical and space-saving solution when safe separation of cleaning media is required without the need for double seat valves with even higher standards.
Benefits
- Enhanced process safety: Leakage outlet pipes prevent uncontrolled release of cleaning media, reducing operator risk and contamination.
- Easy integration: Compatible with existing BV Perform brackets for quick installation and better spare part availability.
- Improved process control: Lockable manual handle with position feedback options ensures secure operation.
- Reliable monitoring: Feedback bracket provides accurate valve position for consistent system performance.
-
Functional Description
-

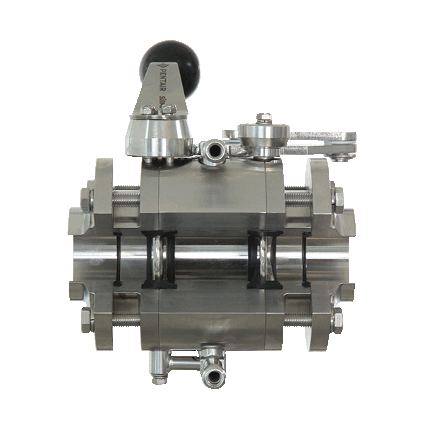

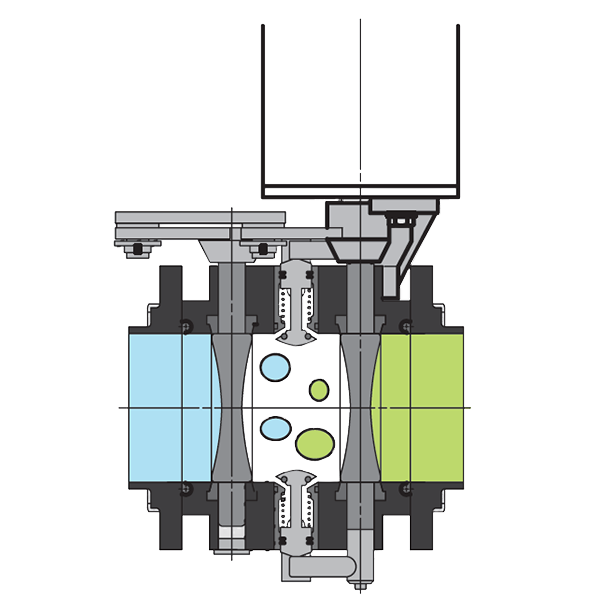

By integrating two butterfly discs and independent vent/drain valves into a common housing, the Pentair Südmo Leakage Butterfly Valve completely isolates the self draining leakage chamber with a single valve housing and actuator.
The mixproof feature of the leakage detection butterfly valve provides excellent process safety in applications where the separation of incompatible media, e.g. product and cleaning-in-place must be ensured. The special seal geometry with an expansion groove ensures low wear and long service life. Various -compliant seal materials are available.
-
Fields of Application
-
Südmo LBV Perform Leakage Butterfly Valves are designed for hygienic systems requiring the reliable separation of incompatible media.
They are used for product/CIP separation in CIP supply and return lines, as well as in associated distribution manifolds.
