Hygienic Shut Off Valves
In hygienic production, you need valves that close securely, last longer, and are easy to clean. Frequent seal replacements and complex maintenance can lead to downtime and higher costs.
Südmo BV Perform solves these challenges with a robust design that’s simple to maintain and built for reliability.

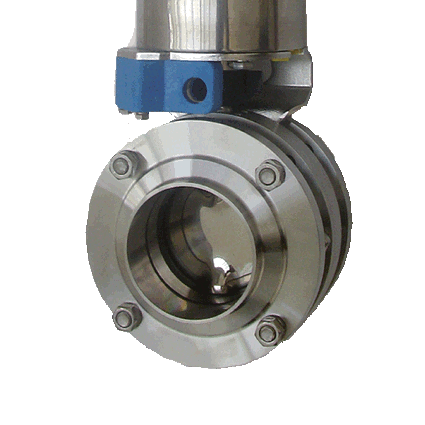

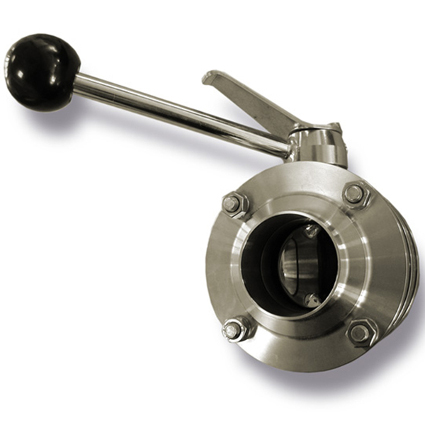

Used in all segments of the process industry, our comprehensive butterfly valve line features both manual and pneumatic drive options, including lockable handles and vertical actuators.
Benefits
- Discs: solid, 316 L stainless steel material, highly resistant to aggressive media, lower switching friction and optimum centering
- Seals: Special seal geometry offers long service life, marking for easy size and material identification, FDA-compliant
- Valve housing: multiple connection types, marking for easy material, size and pressure rating identification, optional housing available
-
How it Works
-
Butterfly valves are primarily used in the food and beverage industry where maintaining sanitary conditions are crucial.

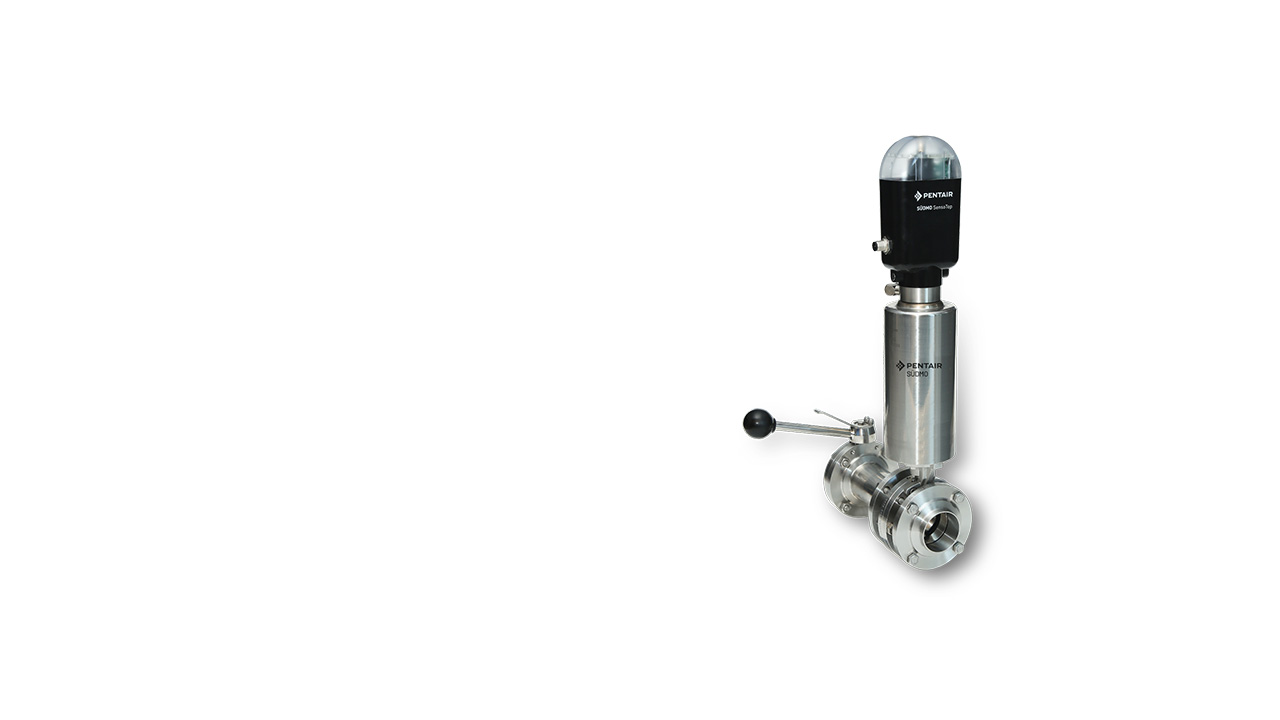

They can be used for isolating or regulating flow in hygienic processes. The closing mechanism has the form of a disk, the operation allows an easy shut-off.
Pentair Südmo offers a variety of options that allow monitoring and control of the shutt-off valves through the control system, including our state-of-the-art IntelliTop 2.0 control unit.
-
Features
-
BUTTERFLY DISK
• Solid forged disk.
• High load capacity in the event of pressure surges.
• Low friction due to optimal centering and guidance by means of plain bearings.
BUTTERFLY SEAL
• Special sealing geometry ensures long service life.
• Quick identification of nominal diameter and material by marking the seal.
• All sealing materials are compliant with the current directives (e.g. FDA, EC 1935/2004).
BUTTERFLY HOUSING
• Large number of connection variants.
• Marking of material, nominal diameter and pressure rating.
• Housing production with acceptance test certificate according to DIN EN ISO 10204 – 3.1 (APZ).
-
Fields of Application
-
Shut-off of liquids at e.g. Distribution panels, receiving stations or containers in numerous areas of application in the beverage and food industry, dairies, as well as in pharmaceutical and cosmetic companies.
DOWNLOADS
| Title | Download PDF | |
| Product leaflet | Südmo Hygienic Butterfly Valves - Shut-off Valves | Download |
| Product leaflet | Südmo Hygienic Butterfly Valves - Shut-off Valves (German) | Download |
| Catalog | Südmo Components | Contact Us |
| Technical documentation | Looking for operating instructions, installation manual, spare part list? | Send us your request |
